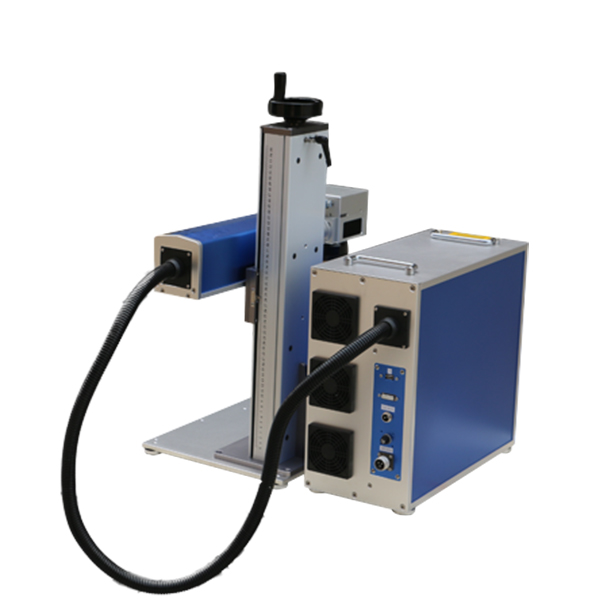

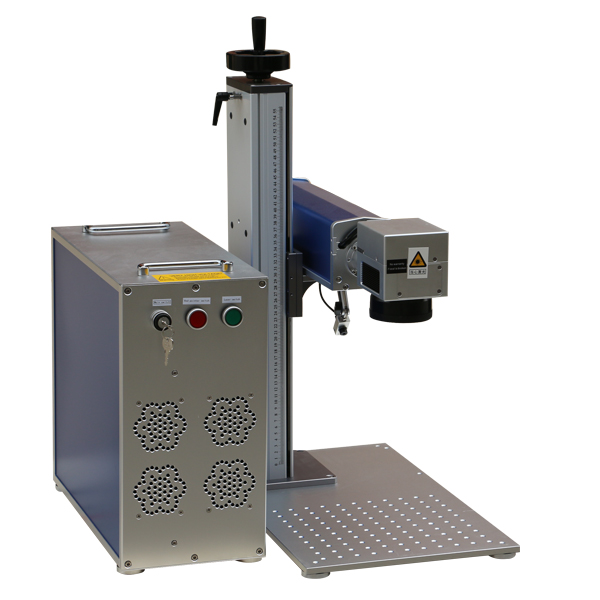

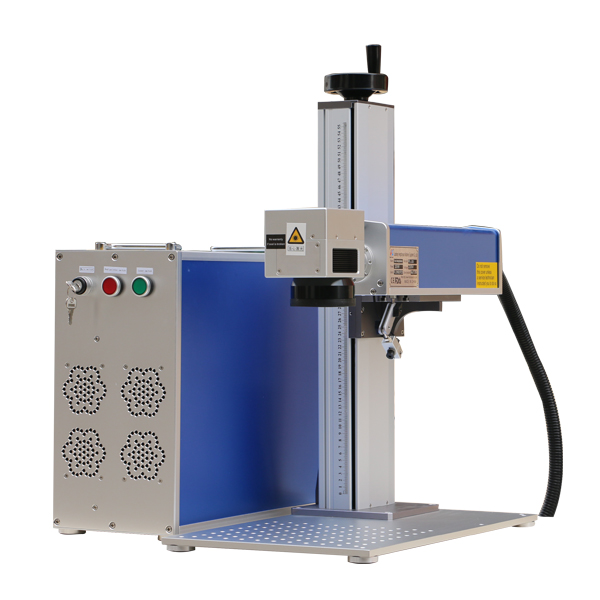

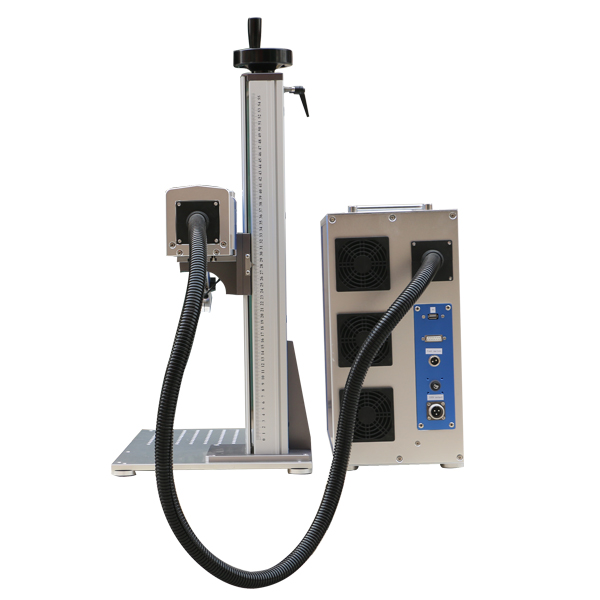

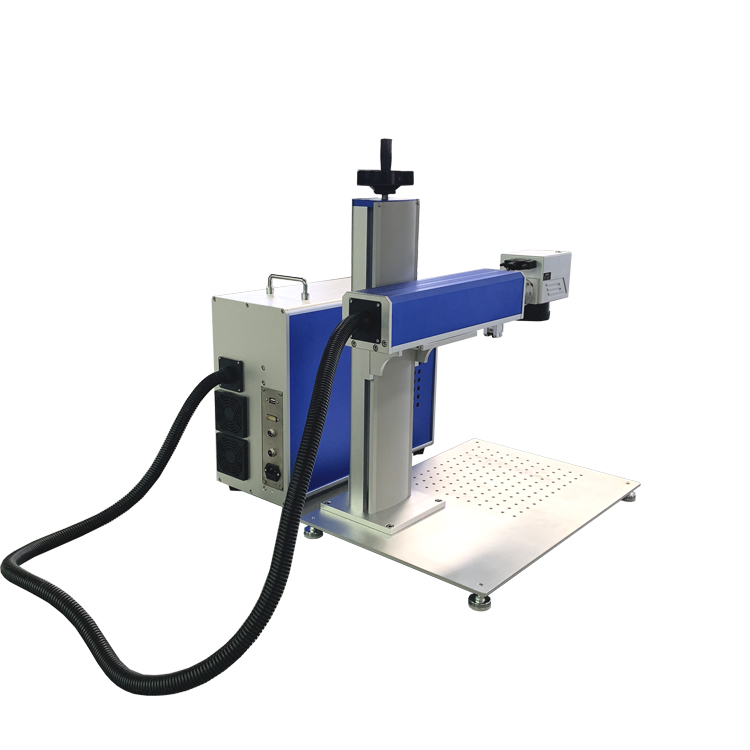

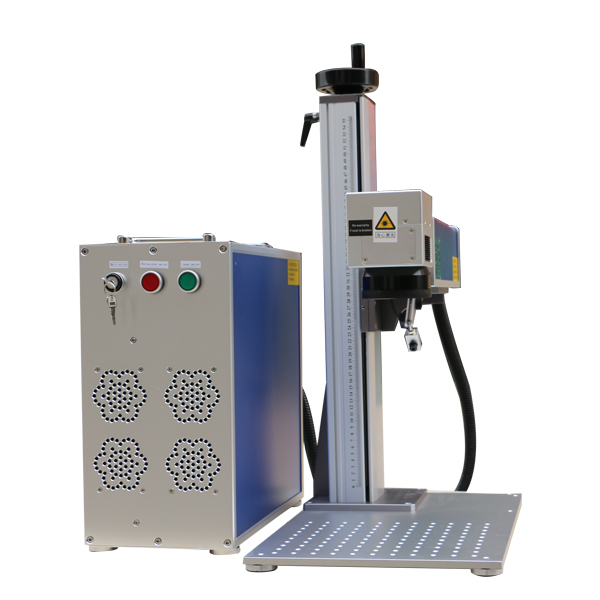

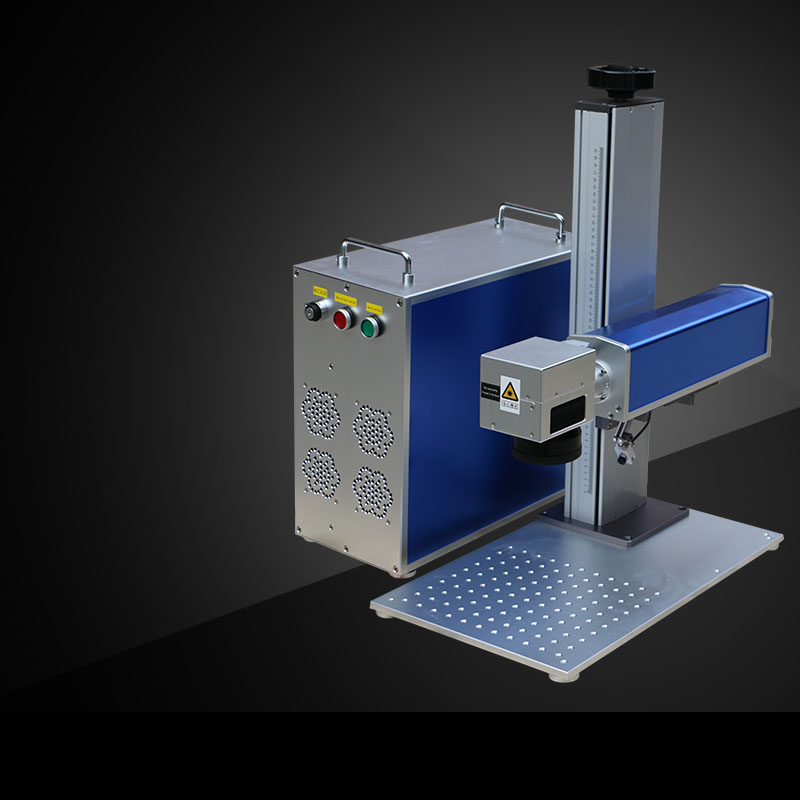

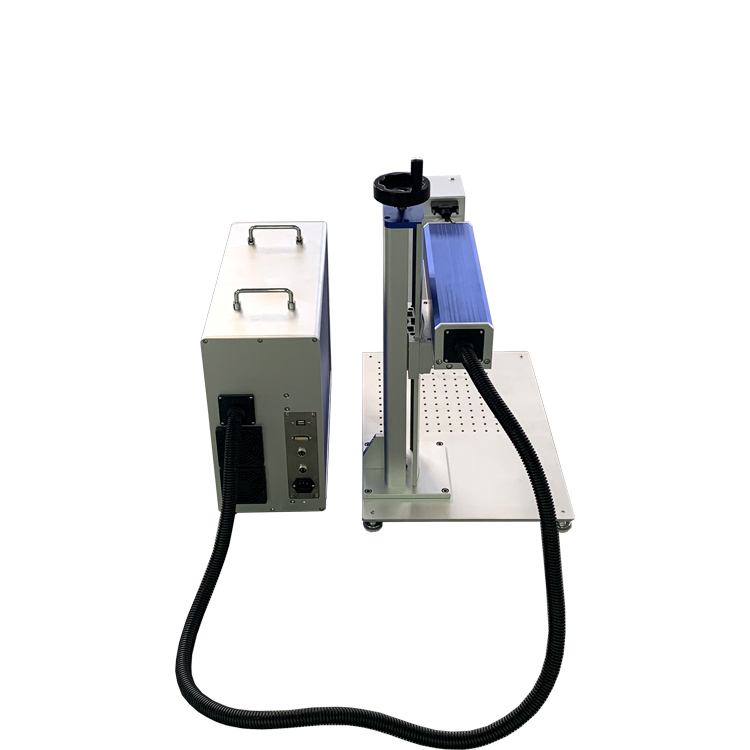

HT-20W 30W 50W 60W 80W 100W Split Shape Laser Engraving Machine
HT-20W 30W 50W 60W 80W 100W Split Shape Laser Engraving Machine


Fiber Laser Can Be Used For ALL Kinds Of Metal And Some Non Metal Materials, Like PVC/Plastic/Tile/Leather/Color Wood.....Glass And Crystal And White Paper Can Not Work For Fiber. We Warranty That Machine For 3 Years. This Machine Is Air Cooling, No Need Maintenance, No Need Other Parts, No Consumable Parts, Fast Speed and High Precision, And Life Can Be 100,000 Working Hours.

Fiber laser marking machines or as some call them lasers for engraving, marking provide the user with very fast and accurate marking as they allow the cutting of letters in the size of 0.15mm. Fiber marking laser is mainly used for marking on all metallic materials as well as some non-metallic materials such as: clear acrylic glass, leather, wood, plastic, etc



HT-20W 30W 50W 60W 80W 100W Split Shape Laser Engraving Machine
HT-20W 30W 50W 60W 80W 100W Split Shape Laser Engraving Machine
HT-20W 30W 50W 60W 80W 100W Split Shape Laser Engraving Machine
HT-20W 30W 50W 60W 80W 100W Split Shape Laser Engraving Machine
HT-20W 30W 50W 60W 80W 100W Split Shape Laser Engraving Machine
HT-20W 30W 50W 60W 80W 100W Split Shape Laser Engraving Machine
HT-20W 30W 50W 60W 80W 100W Split Shape Laser Engraving Machine
HT-20W 30W 50W 60W 80W 100W Split Shape Laser Engraving Machine

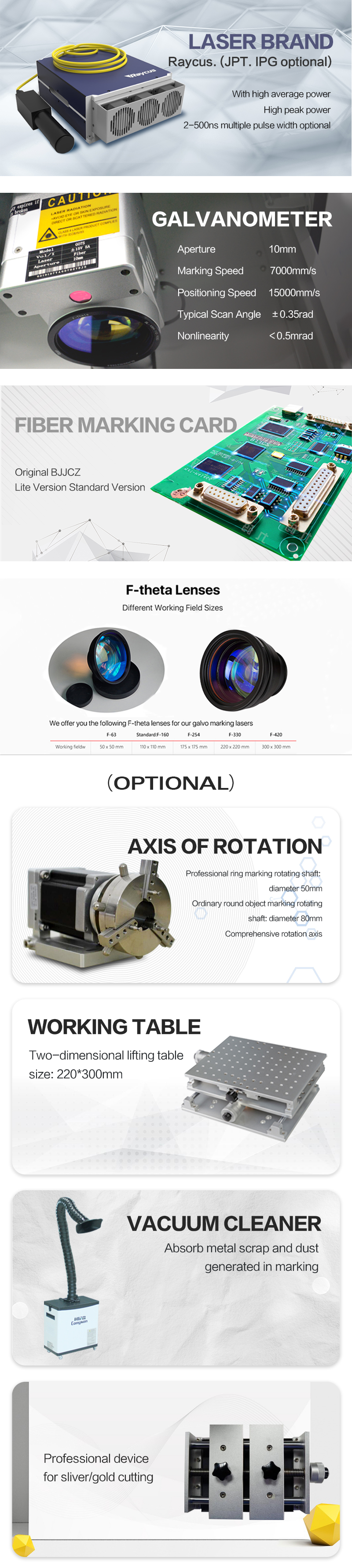

Product features

1. Laser source:

     RAYCUS/MAX/JPT/IPG, 3 years warranty.

2. F-Theta lens

    F-Theta lens with working area 110*110mm,175*175mm,200*200mm,300*300mm for optional.
    If working area smaller, the marking depth by one time is bigger.

3. Control board

     BJJCZ Main board, configured with high precision

4. Famous brand original EZCAD control softward

    Control software, beautiful interface, powerful function, detailed parameters, simple operation, can describe any pattern, text, bar     code, two dimensional code processing

5. High-speed digital galvanometer scanning system

    Sino- galvanometer scanning head adopts scanning laboratory technology, with fast marking speed, digital signal, high precision

6. Lifting handle

    High quality and stable

    Adjust the up and down for different height material marking

7.  Power supply

     Meanwell power supply for galvo head and control board to ensure machine work stably

8.  Red Light Indicator

     Adopt red light indicator to show the laser path since invisible laser beam

9.  Control Button

     Humanized control system, easy to operate, safe and convenient, dust proof design

10. Working table

      Aluminum working table. Flat and smooth, compact structure, flexible processing direction adjustable control.

11. 2D/3D working Table(optional)

     The working table can be adjusted as to and for up and down, front and behind.

     Total 6 direction moving. User can adjust the direction as per actual request, it is optional parts.

12. Rotary device (optional)

      The rotating device is suitable for various round objects, such as rings, glass bottles, etc.The speed can be controlled by the computer liberalization.

13. Pfofessional device for sliver/gold cutting



Product parameters

Effective Working Area

70*70mm, 110*110mm,175*175mm,200*200mm,300*300mm

Laser Power

20W 30W 50W 60W 80W 100W

Worktable

Fixed high quality aluminum worktable

Wave Length

1064nm

Laser Frequency

10~500KHz

Computer System

WINDOWS XP/Win7/8/10 32/64bits

Minimum Character

0.15mm

Minimum Linear Width

0.01mm

Cooling way

Air Cooling

Maxi Marking Speed

7000mm/s

Data Transfer:

USB2.0 transmission

Control System

EZCAD Offline Controller

Graphic Format Supported:

AI, PLT, DXF, BMP, DST, DWG, LAS, DXP

Compatiable Software

CorelDraw, AutoCAD,Adobe Illustrator,Cadian

Total Power

500W ( AC220V 50Hz /AC110V 50Hz)

Package Weight/dimension

55KG

Package Size

730mm×470mm×740mm

机器配件 选用 2.png
