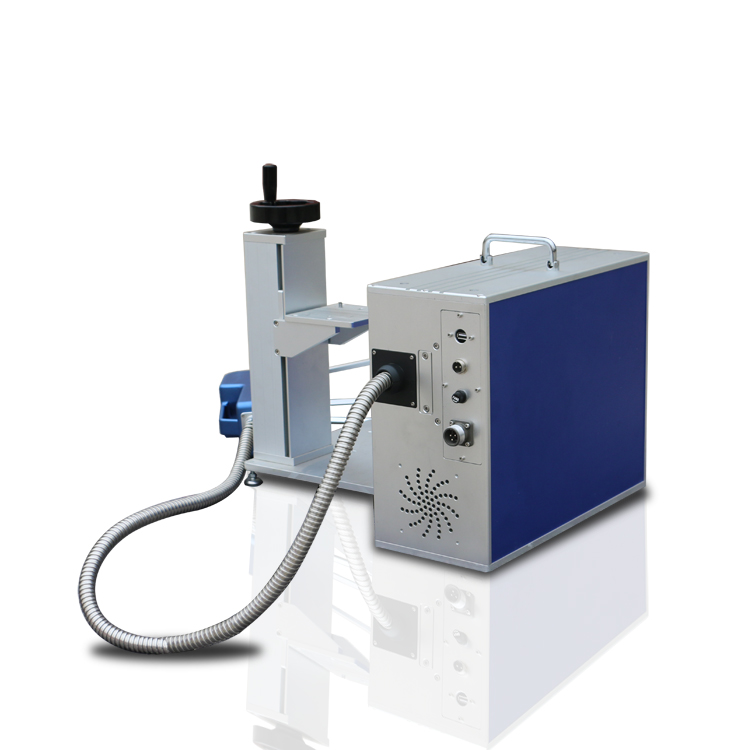

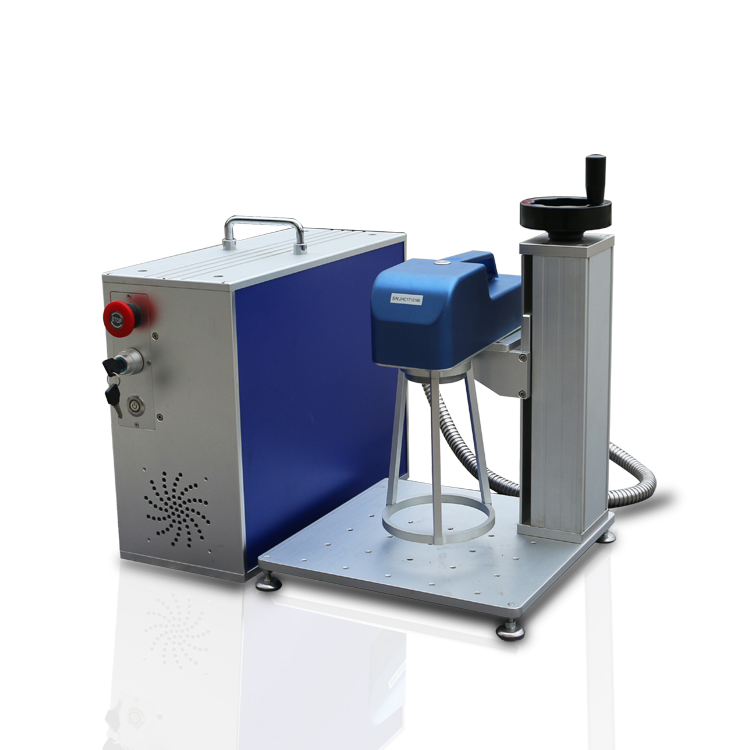

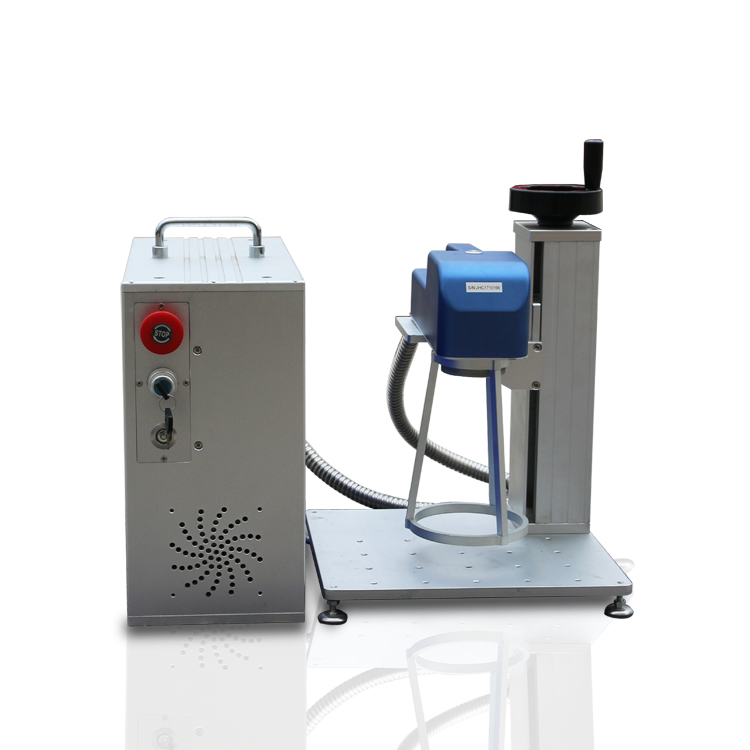

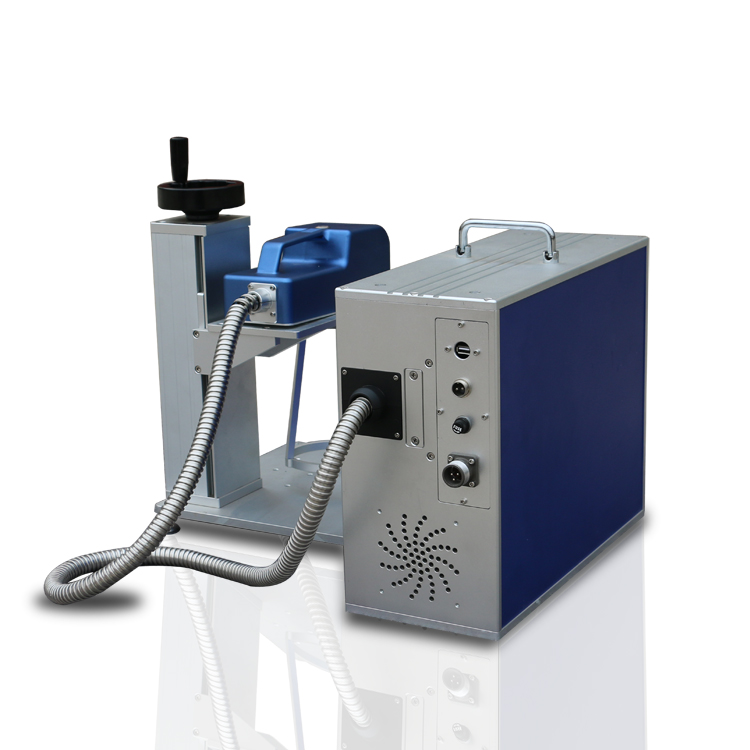

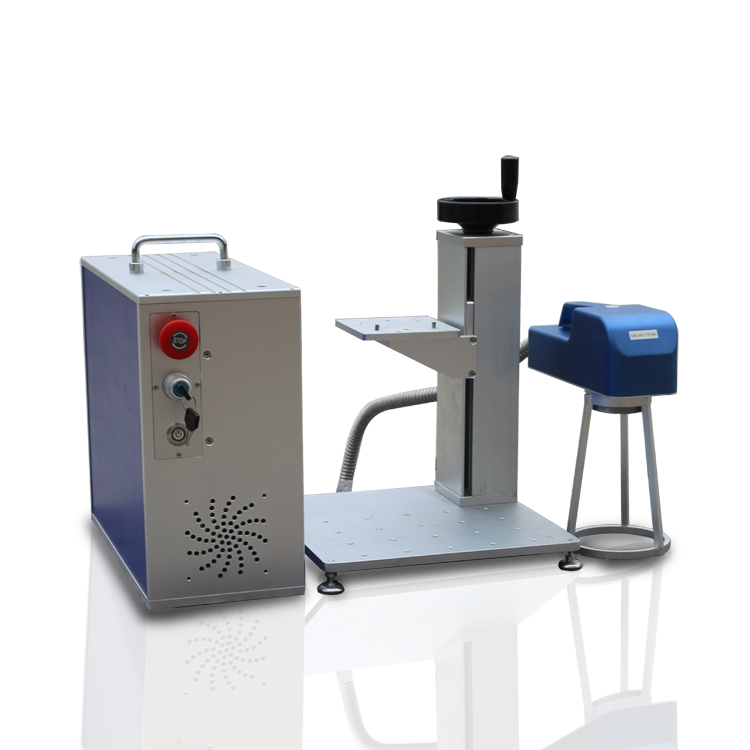

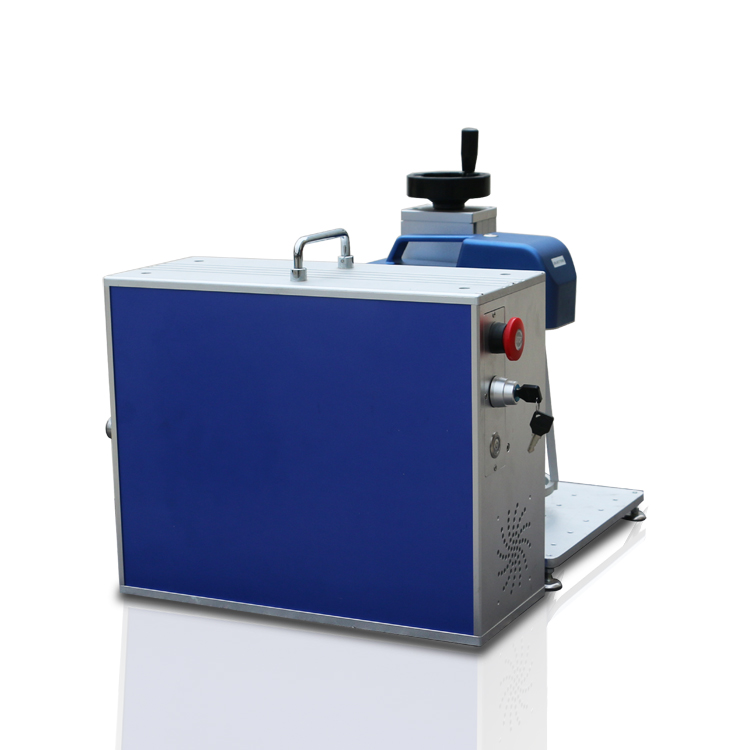

new shape handheld type fiber laser marking machine
new shape handheld type fiber laser marking machine

Fiber laser marking machines or as some call them lasers for engraving, marking provide the user with very fast and accurate marking as they allow the cutting of letters in the size of 0.15mm. Fiber marking laser is mainly used for marking on all metallic materials as well as some non-metallic materials such as: clear acrylic glass, leather, wood, plastic, etc


new shape handheld type fiber laser marking machine
new shape handheld type fiber laser marking machine
new shape handheld type fiber laser marking machine
new shape handheld type fiber laser marking machine
new shape handheld type fiber laser marking machine
new shape handheld type fiber laser marking machine
Product features

Material

Fiber

CO2

UV

Wooden Product

Acrylic

Plastic   Products

Leather Fabric


Glass Ceramic


Resin Plastic


Paper   Packaging


Electronic   Components


Hardwaretool   Products


3C Electronics


Precision   Equipment


High & Low   Voltage Electrical Appliances



Product parameters

Specification

Fiber marking   machine


Type of model

HT-20, HT-30, HT   -50, HT-60,HT-70,HT-80, HT -100,

Output power

20W / 30W / 50W   / 60W/70W/80W/100W

Cutting   thickness

up to 0,3 mm /   up to 0,5 mm / up to 1,2 mm/ up to 1,3 mm

Cooling

air cooling

Type of laser   source

Fiber laser:  RAYCUS/MAX/JPT/IPG

Wavelenght of   laser beam

1064 nm

Frequency

20Hz-200kHz

Max.marking sped

7000 mm / s

Working area   depends on the lense

170 × 170 mm /   option 50 × 50 mm, 70 × 70 mm, 100 × 100 mm, 200 × 200 mm, 300 × 300mm

Min. engraving   size

0,15 mm

Operating   environment temperature

5°C - 35°C

Operation   voltage

AC230 +/- 10% 50   Hz

Accuracy

<0,01 mm

Computer   interface

USB

Controler /   Software

EzCAD

Graphic format   supported

AI, BMP, Dst, Dwg, DXF, LAS, PLT, JPG CAD CDR   DWGPCX

Operating   systems

Windows /XP   /Vista /Win7 /Win8 /Win10

Exhausting   System

optional

Dimension of   machine

610 × 600 × 700   mm

Weight of   machine

40 kg

Other included   items/parts

laser pointer

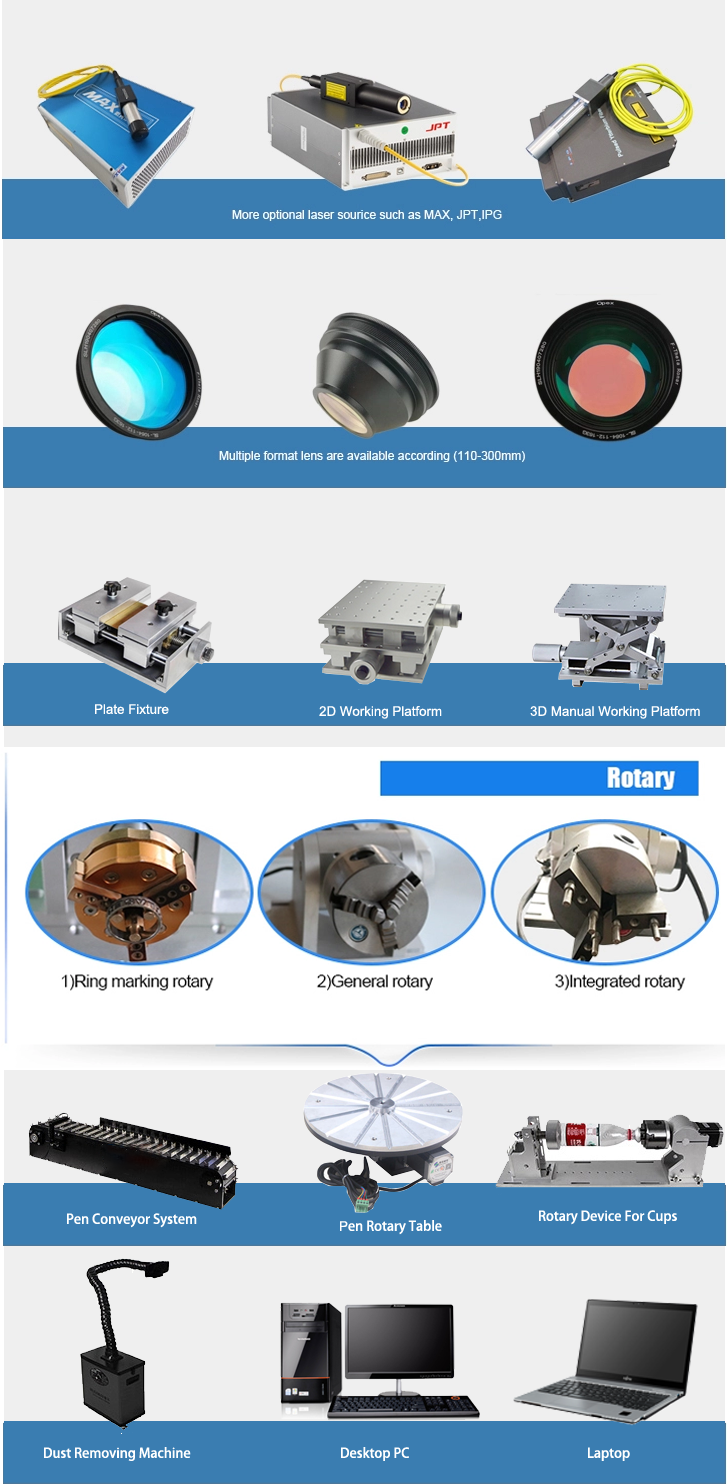

Optional items

rotary device,   special rotary for rings, 2D table, material holder
